1/2" x 1/2" U-Bend

Description

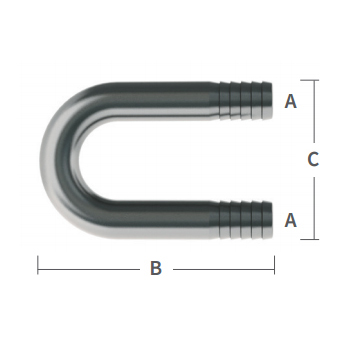

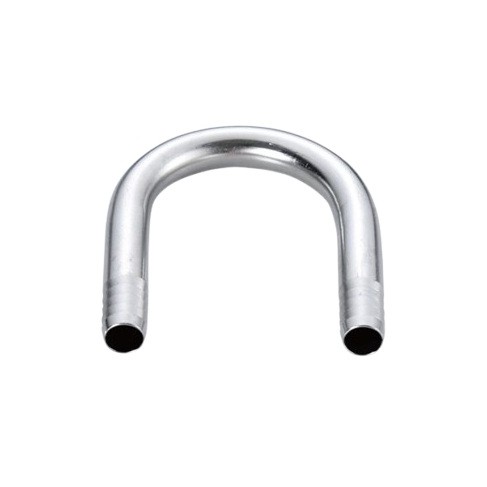

SSU0707 is a stainless steel u-bend with 1/2 inch x 1/2 inch connections.

Use the U-shaped body to return a hose route alongside itself without forcing the hose into a tight unsupported bend.

Product details

• Listed connection sizes: 1/2 inch x 1/2 inch
• Body range: Stainless steel
• Product code: SSU0707

Selection and use

Select hose and retention hardware appropriate to the barbs, operating conditions and installation.

Range material information

The supplier specification lists 303 and 304 stainless steels: 303 to ASTM A581/A582 or AMS 5640, 304 to AMS 5639 or ASTM A479, and 304 tubing to ASTM A269. Stainless parts are passivated to ASTM A967. The range specification excepts nickel-plated brass nuts and brass check valves; it does not identify a single steel grade for every component.

Browse U-Bend for related options.
