Description

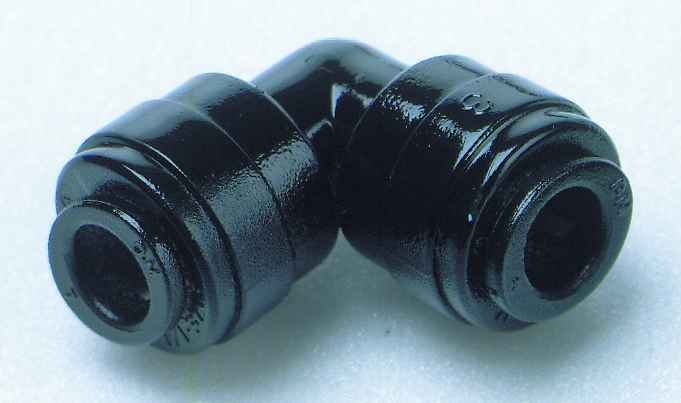

DMfit AEU2222M is an elbow union that connects two 22mm outside-diameter tubes at a right angle.
Use it where a tube run needs a defined change of direction, such as beside an equipment panel or within a compact assembly. Both ends receive tubing directly.
Connection details
- Tube connection 1: 22mm outside diameter
- Tube connection 2: 22mm outside diameter
- Product code: AEU2222M
Fitting notes
Both tube sockets are sized for 22mm tubing.
Browse Elbow Union for related options.
For assembly guidance and range-specific operating limits, see the DMfit technical guide.
