4mm tube x 1/8"BSPT Male Elbow Swivel

Description

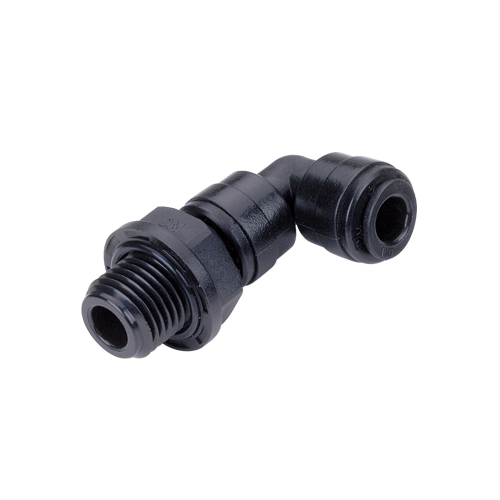

DMfit AMES0402M is a male elbow swivel connecting 4mm outside-diameter tubing to a 1/8 inch BSPT female port through its male thread.

The elbow body turns the tube route at the threaded equipment connection. It is useful when the line needs to leave the port at an angle rather than projecting straight out. The swivel layout helps position the tube route during assembly; it should not be treated as a continuously rotating joint.

Connection details

• Tube OD at socket: 4mm
• Male thread: 1/8 inch BSPT
• Product code: AMES0402M

Fitting notes

Match the complete thread designation; similarly sized BSP, NPTF and UN threads are not interchangeable.

Browse Male Elbow Swivel BSPT for related options.

For assembly guidance and range-specific operating limits, see the DMfit technical guide.
