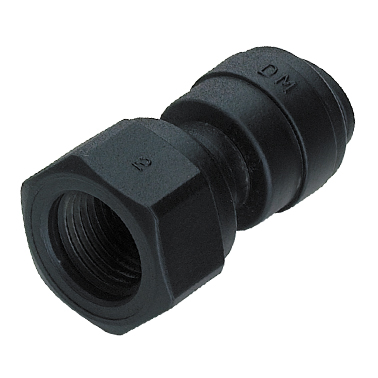

6mm x 7/16-20UNF- Cone Type Female Adapter

Description

DMfit AFAUF067/16CM is a female adapter connecting 6mm outside-diameter tubing to a 7/16 inch - 20 UNF male port through its female thread.

Use the adapter where a tube line meets threaded equipment, a valve or another compatible fitting. The tube size and nominal thread size must each match their respective connection.

Connection details

• Connection profile: Cone type
• Tube OD at socket: 6mm
• Female thread: 7/16 inch - 20 UNF
• Product code: AFAUF067/16CM

Fitting notes

This version has the cone-type connection profile. Match that sealing profile as well as the thread designation when replacing an adapter.

Browse Female Adapter UNF (C) for related options.

For assembly guidance and range-specific operating limits, see the DMfit technical guide.
